VIKING VE-LIGHT

Add Panel Lighting to Your Viking Doorbox or Entry Phone!

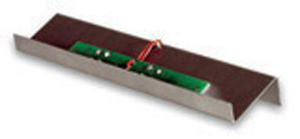

The VE-LIGHT kit adds bright LED illumination to any doorbox or entry phone that is housed in a Viking VE-5x5 or VE-6x7 enclosure. It can also be used on Viking’s E-1600A-BLT-EWP tower phone.

The stainless steel bracket is easily mounted using existing holes and hardware. Two bright white LEDs are used as the light source, so there are no filaments to break or bulbs to burn out.

If used with the W-1000 or W-3000, the VE-LIGHT can be wired directly to the AC power input of the doorbox, or use the included 12 volt power supply. Any power source between 12 and 24 volts, AC or DC can be used to supply the VE-LIGHT with power.

Applications:

Use in combination with the VE-5x5 and:
- E-10
- E-30
- W-1000
- W-3000
- E-1600-20A
Use in combination with the VE-6x7 and the K-1700-3 Apartment Entry Phone
Use in combination with the E-1600A-BLT-EWP

Features:

Ultra bright LEDs for long life
Easy retro-fit to exisitng entry phones
Can use the same power source as doorbox
Can be powered from 12 to 24 volts AC or DC
Made in the USA

Specifications:

Power: 12 to 24 volts, AC or DC, 50mA maximum, 12V DC adapter included
Dimensions: 127mm x 8mm x 25mm (5” x 3” x 1”)
Environmental: -26°C to 54°C (-15°F to 130°F) with 5% to 95% non-condensing humidity
Shipping Weights: 0.45 kg (1 lb)
Maximum Power Run: 304 (1000 ft) using 24 AWG wire
